VS010 路由器 旁路纪实

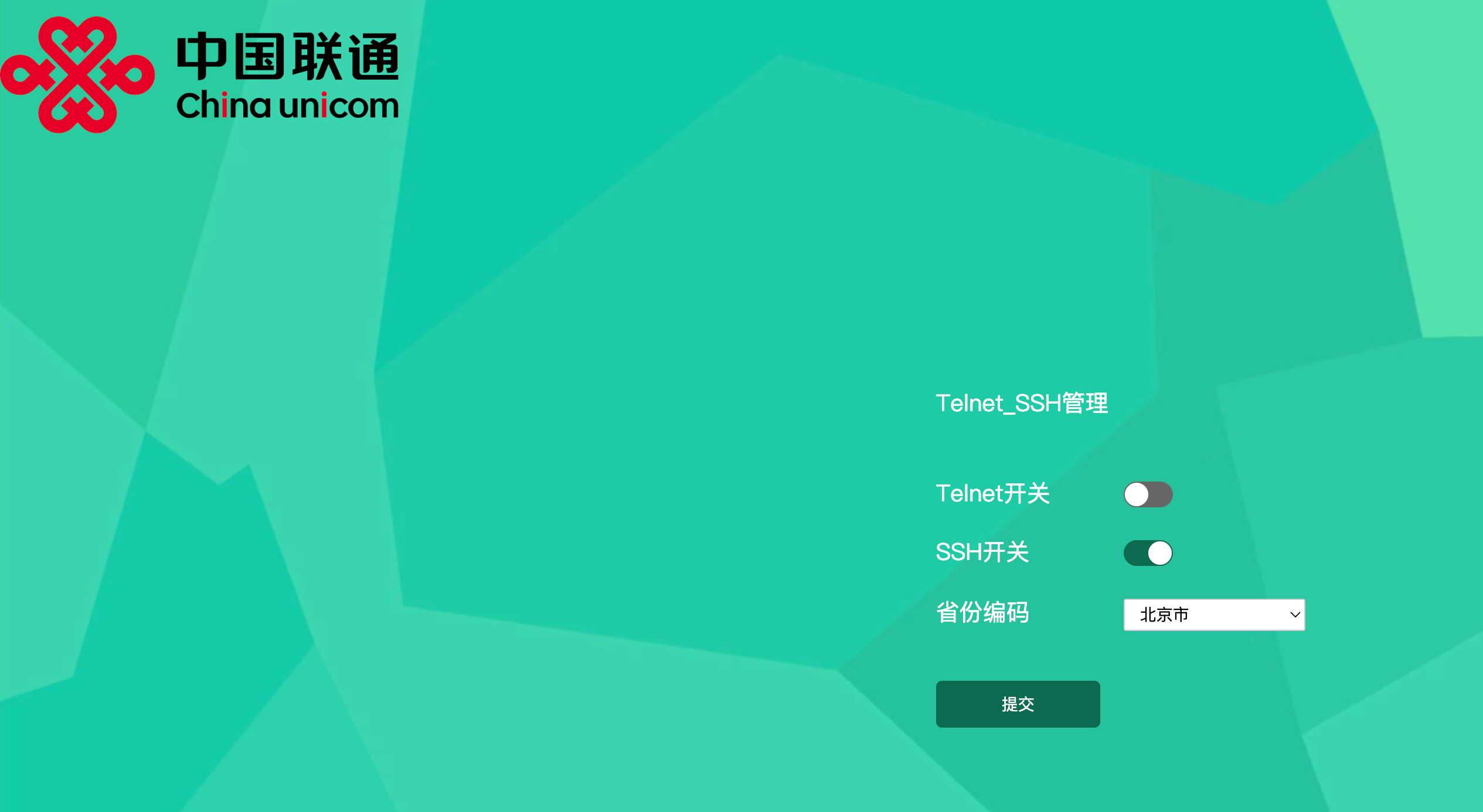

开启SSH

1
http://192.168.2.1/api/set/telnet

image-20250714032158122

image-20250714032215209

修改WIFI名称和密码

WIFI名称不能有空格，密码不能有特殊符号 解决方案

image-20250714032433186

image-20250714033330139

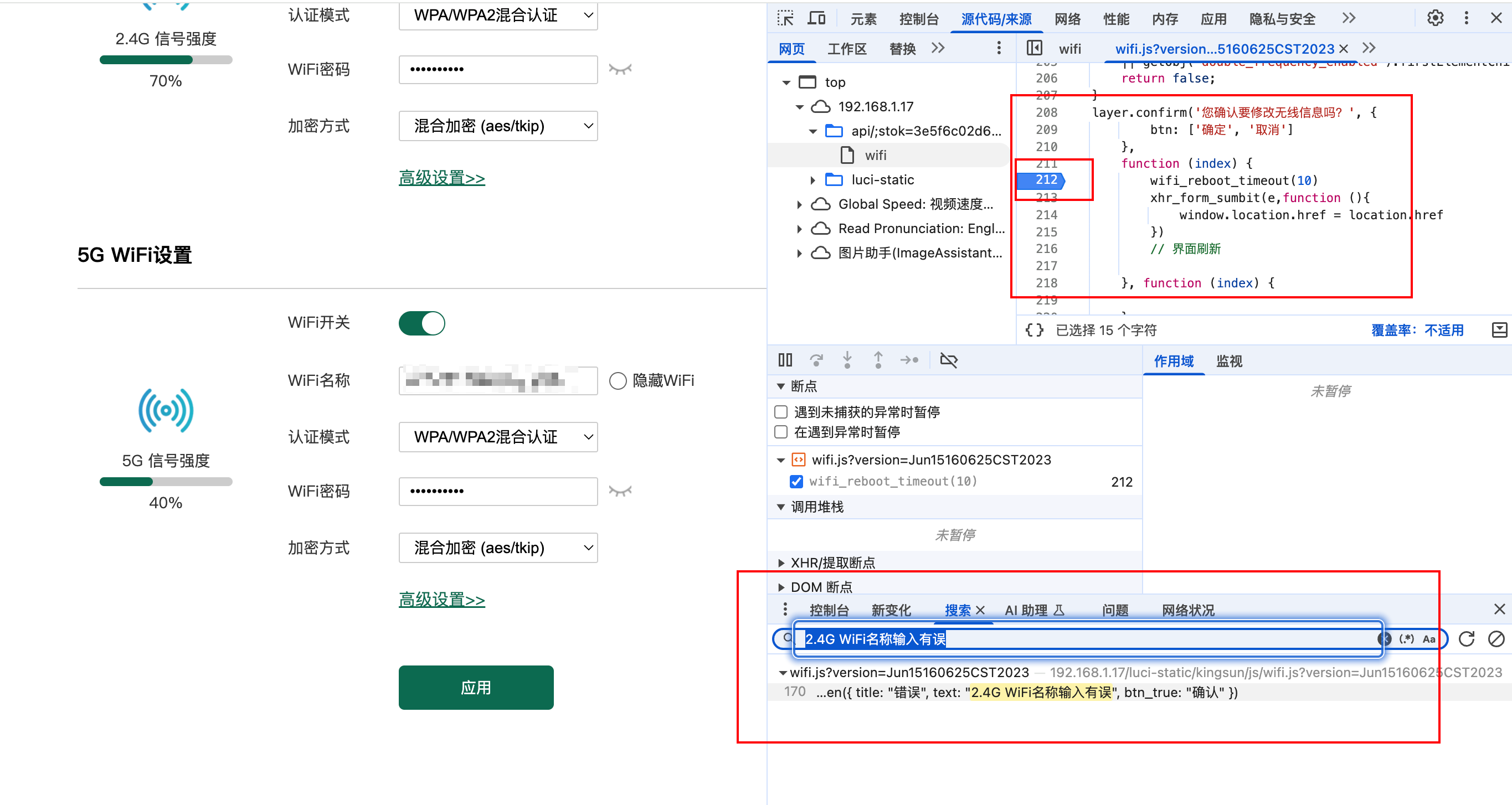

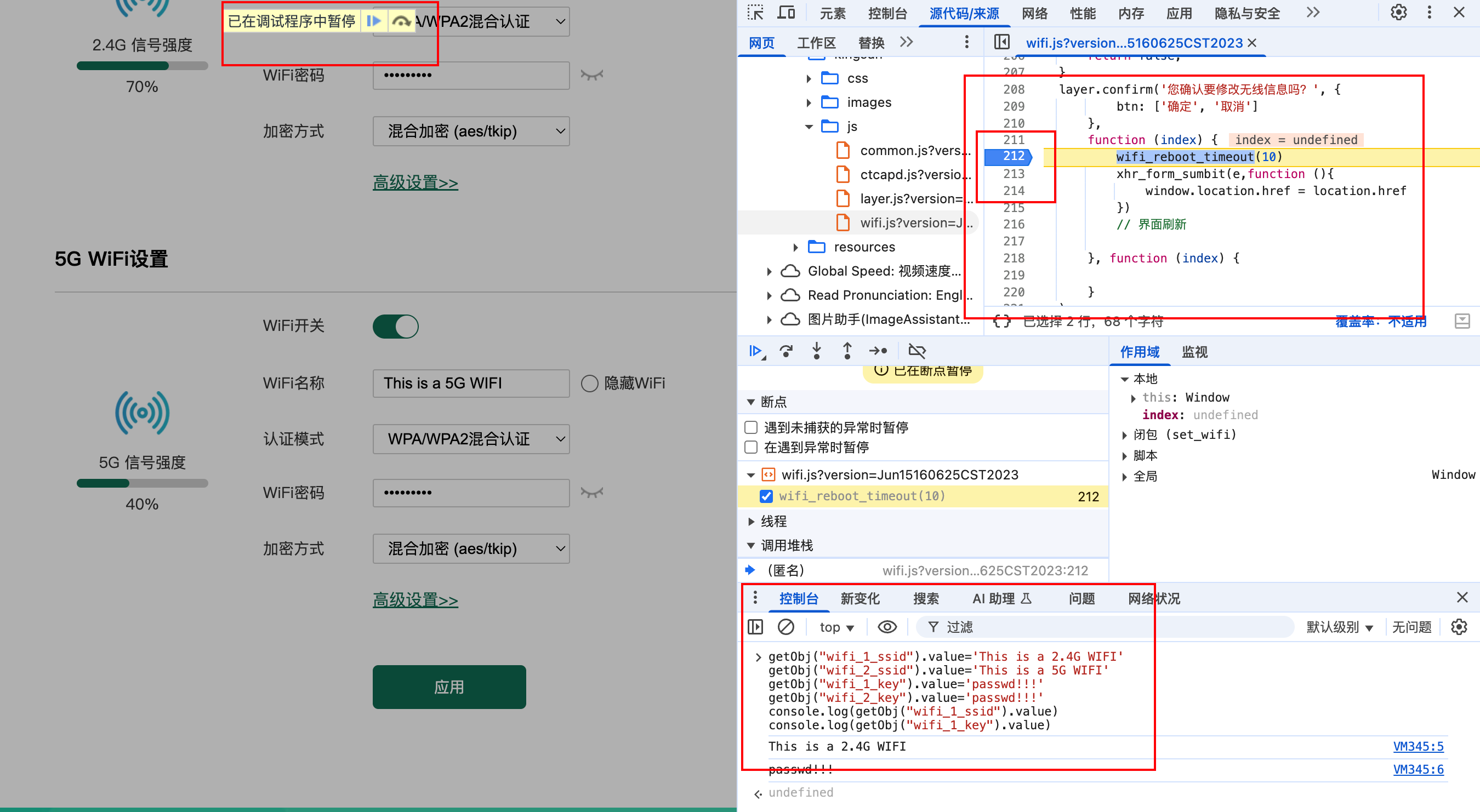

先把名字和密码设置成正常值，断点到图中标记的点，然后控制台执行命令

搜索关键字：2.4G WiFi名称输入有误

1
2
3
4
5
6
getObj("wifi_1_ssid").value='WIFI'
getObj("wifi_2_ssid").value='WIFI'
getObj("wifi_1_key").value='password'
getObj("wifi_2_key").value='password'
console.log(getObj("wifi_1_ssid").value)
console.log(getObj("wifi_1_key").value)

修改密码

密码不能通过改数据实现特俗符号，或者实现难度高

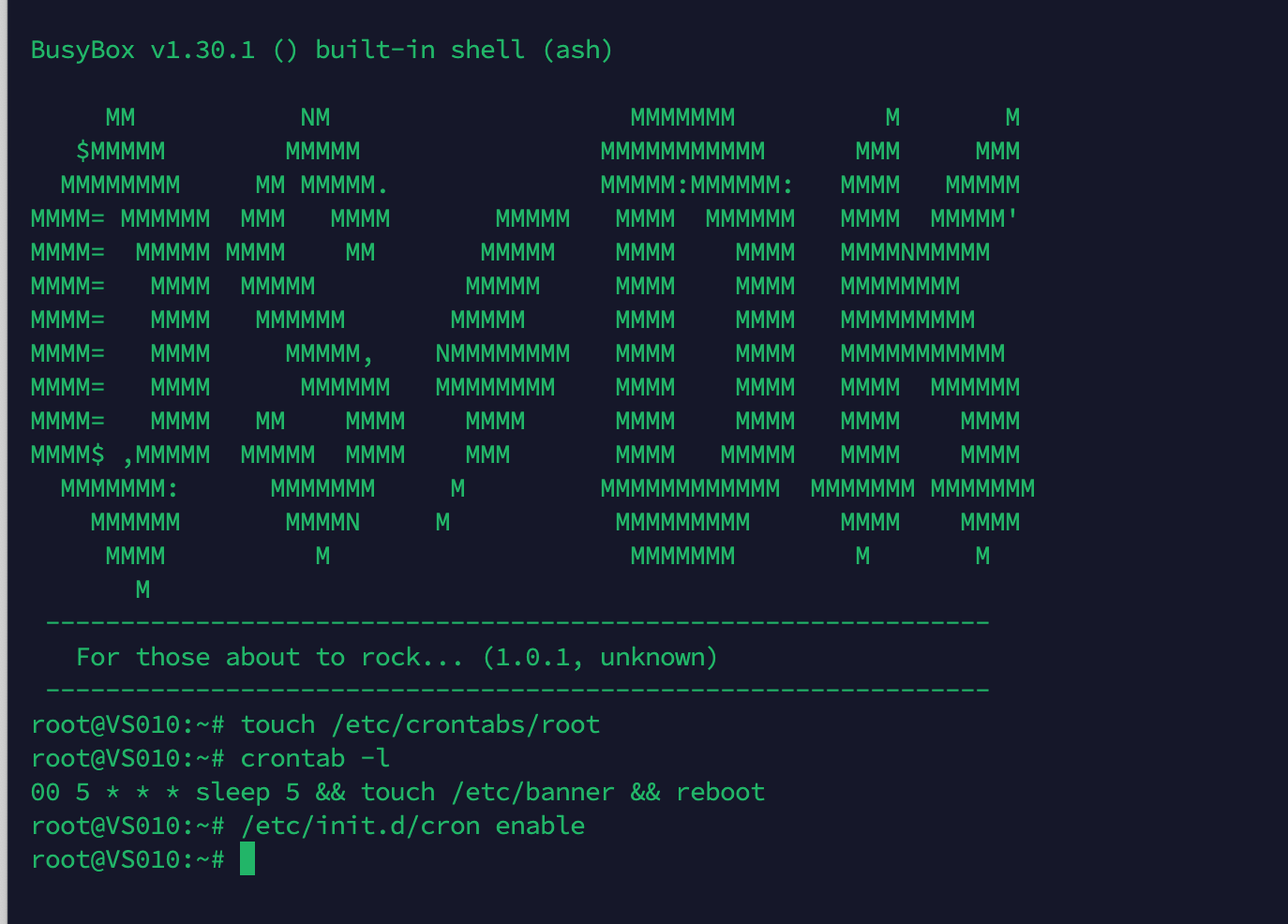

定时重启

需要开启SSH，连接SSH

1
2
3
4
touch /etc/crontabs/root
crontab -l
00 5 * * * sleep 5 && touch /etc/banner && reboot
/etc/init.d/cron enable

image-20250714033622520

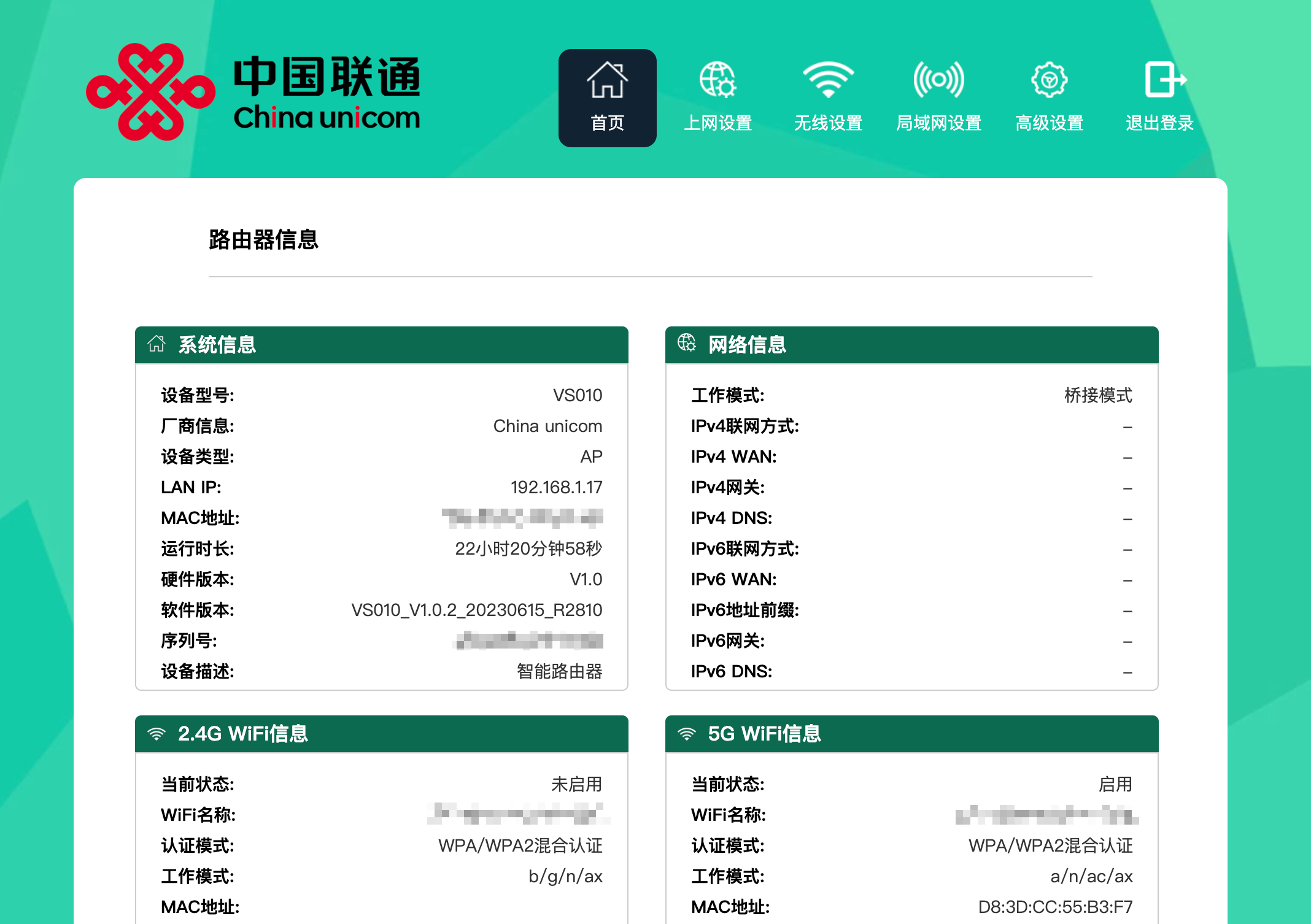

信息

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
cat /etc/openwrt_release
DISTRIB_ID='OpenWrt'
DISTRIB_PRODUCT='VS010'
DISTRIB_RELEASE='1.0.1'
DISTRIB_REVISION='unknown'
DISTRIB_CODENAME='chaos_calmer'
DISTRIB_TARGET='ipq/ipq50xx'
DISTRIB_DESCRIPTION='OpenWrt Chaos Calmer 1.0.1'
DISTRIB_TAINTS='no-all busybox override'

cat /etc/openwrt_version
1.0.1

uname -a
Linux VS010 4.4.60 #215 SMP PREEMPT Thu Jun 15 16:06:25 CST 2023 armv7l GNU/Linux

cat /etc/opkg/distfeeds.conf
src/gz chaos_calmer_base http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/base
src/gz chaos_calmer_nss http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/nss
src/gz chaos_calmer_sigma_dut_open http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/sigma_dut_open
src/gz chaos_calmer_lte_data_oss http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/lte_data_oss
src/gz chaos_calmer_minidump http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/minidump
src/gz chaos_calmer_luci http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/luci
src/gz chaos_calmer_bootloader http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/bootloader
src/gz chaos_calmer_qca_IOT http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/qca_IOT
src/gz chaos_calmer_qca_platform_utils http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/qca_platform_utils
src/gz chaos_calmer_qca_ezmesh http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/qca_ezmesh
src/gz chaos_calmer_ssdk http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/ssdk
src/gz chaos_calmer_qca_lib http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/qca_lib
src/gz chaos_calmer_wlan_iw http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/wlan_iw
src/gz chaos_calmer_athdiag http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/athdiag
src/gz chaos_calmer_qca_mcs http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/qca_mcs
src/gz chaos_calmer_athtestcmd http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/athtestcmd
src/gz chaos_calmer_qca_hk http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/qca_hk
src/gz chaos_calmer_btdaemon http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/btdaemon
src/gz chaos_calmer_wlan_open http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/wlan_open
src/gz chaos_calmer_networking http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/networking
src/gz chaos_calmer_qca http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/qca
src/gz chaos_calmer_wlan_hostapd http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/wlan_hostapd
src/gz chaos_calmer_hyfi http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/hyfi
src/gz chaos_calmer_platform_utils http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/platform_utils
src/gz chaos_calmer_art2 http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/art2
src/gz chaos_calmer_nss_host http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/nss_host
src/gz chaos_calmer_whc http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/whc
src/gz chaos_calmer_ieee1905_security http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/ieee1905_security
src/gz chaos_calmer_qca_mad http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/qca_mad
src/gz chaos_calmer_qca_cp http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/qca_cp
src/gz chaos_calmer_routing http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/routing
src/gz chaos_calmer_shortcut_fe http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/shortcut_fe
src/gz chaos_calmer_wigig_utils_oss http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/wigig_utils_oss
src/gz chaos_calmer_bluetopia http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/bluetopia
src/gz chaos_calmer_qca_son_mem_debug http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/qca_son_mem_debug
src/gz chaos_calmer_weave http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/weave
src/gz chaos_calmer_packages http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/packages
src/gz chaos_calmer_nss_prop http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/nss_prop
# src/gz chaos_calmer_nss_cust http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/nss_cust
# src/gz chaos_calmer_nss_userspace http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/nss_userspace
# src/gz chaos_calmer_ath10k_firmware http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/ath10k_firmware
# src/gz chaos_calmer_alljoyn http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/alljoyn
# src/gz chaos_calmer_wlan http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/wlan
# src/gz chaos_calmer_wapid http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/wapid
# src/gz chaos_calmer_qcom_utils_internal http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/qcom_utils_internal
# src/gz chaos_calmer_apple_homekit http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/apple_homekit
# src/gz chaos_calmer_qca_plc http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/qca_plc
# src/gz chaos_calmer_sigma_dut_10_4 http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/sigma_dut_10_4
# src/gz chaos_calmer_wigig_utils http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/wigig_utils
# src/gz chaos_calmer_wigig_firmware http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/wigig_firmware
# src/gz chaos_calmer_lte_cm http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/lte_cm
# src/gz chaos_calmer_bluetooth http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/bluetooth
# src/gz chaos_calmer_zigbee http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/zigbee
# src/gz chaos_calmer_thread http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/thread
# src/gz chaos_calmer_ioe_bridges http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/ioe_bridges
# src/gz chaos_calmer_qca_np http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/qca_np
# src/gz chaos_calmer_qca_lit http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/qca_lit
# src/gz chaos_calmer_csrmesh http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/csrmesh
# src/gz chaos_calmer_sigma_dut http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/sigma_dut
# src/gz chaos_calmer_qca_wapi http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/qca_wapi
# src/gz chaos_calmer_voice_control http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/voice_control
# src/gz chaos_calmer_meeami_utils http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/meeami_utils
# src/gz chaos_calmer_wdsp http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/wdsp
# src/gz chaos_calmer_lte_data_prop http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/lte_data_prop
# src/gz chaos_calmer_snpe http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/snpe
# src/gz chaos_calmer_adsprpc http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/adsprpc
# src/gz chaos_calmer_data_modem_monitor http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/data_modem_monitor
# src/gz chaos_calmer_healthmonitor http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/healthmonitor
# src/gz chaos_calmer_kickstart http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/kickstart
# src/gz chaos_calmer_qtip_server http://downloads.openwrt.org/chaos_calmer/1.0.1/ipq/ipq50xx/packages/qtip_server

cat /etc/opkg.conf
dest root /
dest ram /tmp
lists_dir ext /var/opkg-lists
option overlay_root /overlay
option check_signature 1

cat /etc/opkg/customfeeds.conf
# add your custom package feeds here
#
# src/gz example_feed_name http://www.example.com/path/to/files
