小鸡的春天(vps)

三个月前，我无意间看到：

image-20240422194309500

这不冲？VPS 注册链接 可惜没有冲 $10送 $100 活动了

昨天的主人公 Ubuntu 16.04 卡冒烟，今天的主人公 openwrt 真香

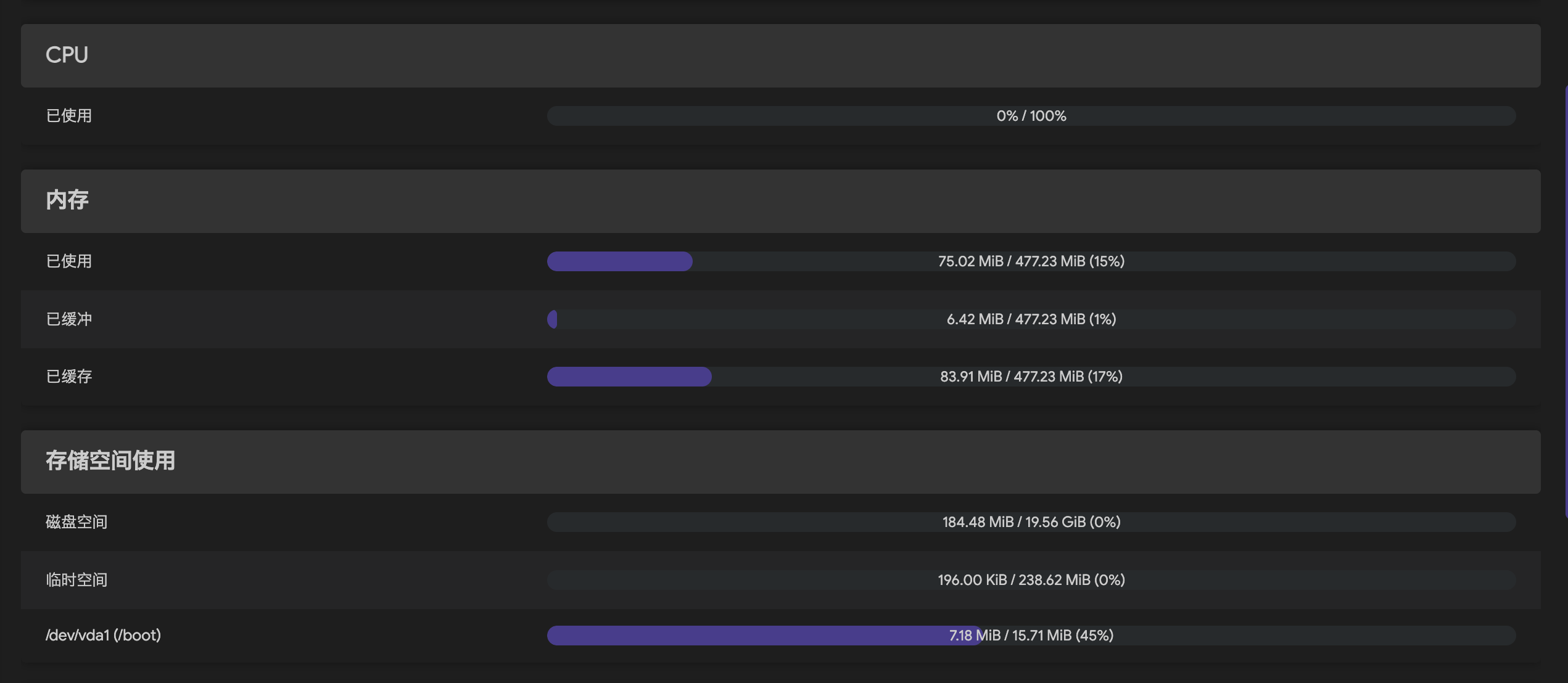

预览

image-20240422205537014

要求

  1. 具有 vnc 显示的 vps（能显示屏幕，控制键盘）
  2. 有 Google 查阅文档的能力
  3. 有一定的 linux 基础
  4. 能够一键重装
  5. Debian / RanHat 皆可

安装

收集信息

  1. 确定当前系统的启动方式为legacy还是uefi，因为不同启动方式需要的固件不一样。可以使用lsblk查看，如果是uefi启动，会有/boot/efi目录或者一个分区号比较大的类似于/dev/vda128的分区，如果没有此目录，那就是legacy启动（不一定，通常是这样）

    1
    2
    3
    4
    5
    6
    root@temp-sh:~# lsblk
    NAME   MAJ:MIN RM  SIZE RO TYPE MOUNTPOINT
    vda    254:0    0   40G  0 disk
    ├─vda1 254:1    0    1M  0 part
    ├─vda2 254:2    0  191M  0 part /boot/efi
    └─vda3 254:3    0 39.8G  0 part /

  2. 记录当前系统的网络配置，网络类型分两种：

    1. VPS 在内网中，IP 地址为内网 IP，获取 IP 方式为 DHCP 或者 static
    2. VPS 直接分配公网 IP
    1
    2
    3
    4
    5
    6
    auto eth0
    iface eth0 inet static
      address 123.123.60.154/24
      gateway 123.123.60.1
      dns-nameservers 8.8.8.8 1.1.1.1
     #如果IP是DHCP获取的，可以使用netstat -rn 查看网关

下载镜像

推荐 openwrt.ai

1
2
3
4
5
6
7
8
9
# 创建内存临时文件夹
mount -t tmpfs tmpfs /tmp/
cd /tmp

# 下载镜像
wget https://dl.openwrt.ai/releases/targets/armsr/armv8/openwrt-03.30.2024-armsr-armv8-generic-ext4-combined.img.gz -O ext4.img.gz

# 解压
gzip -d ext4.img.gz

刷机

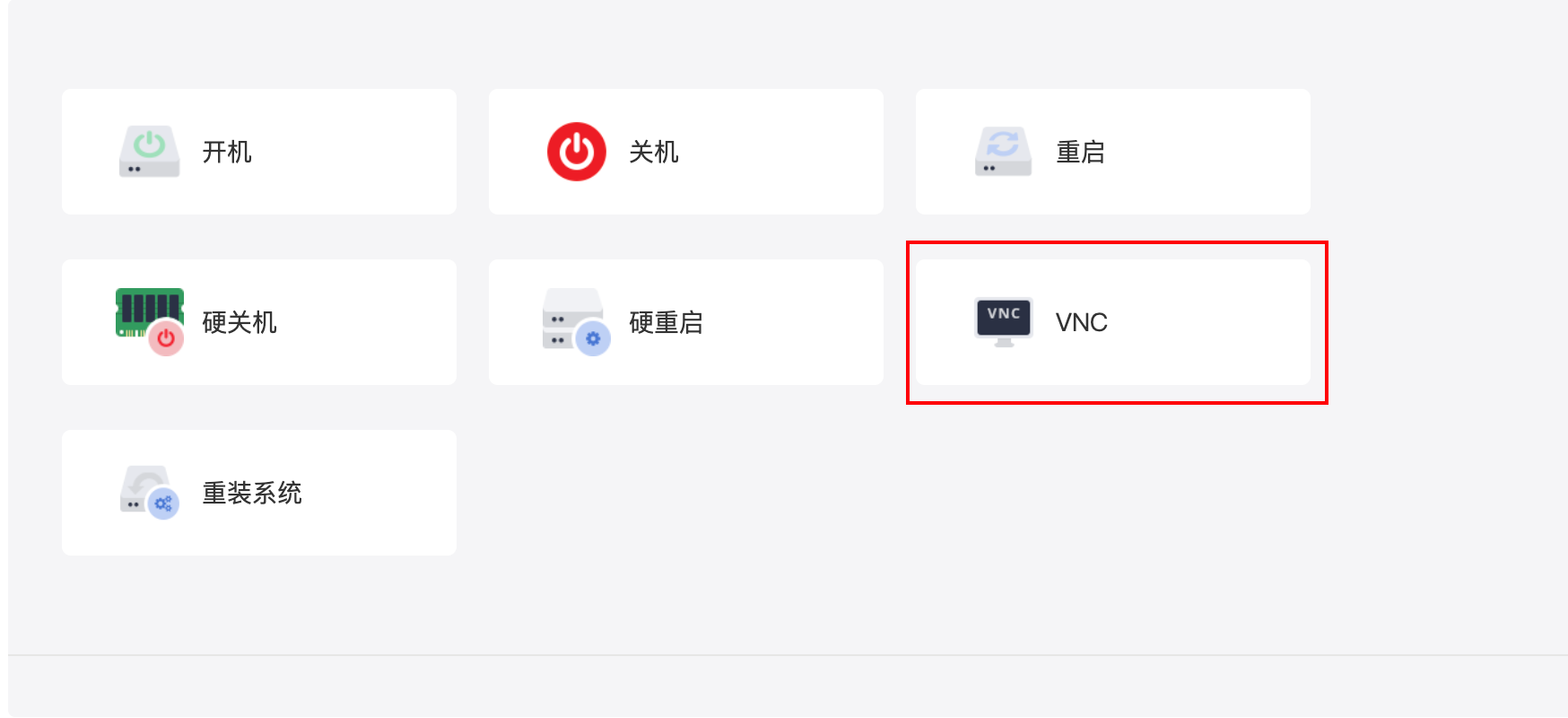

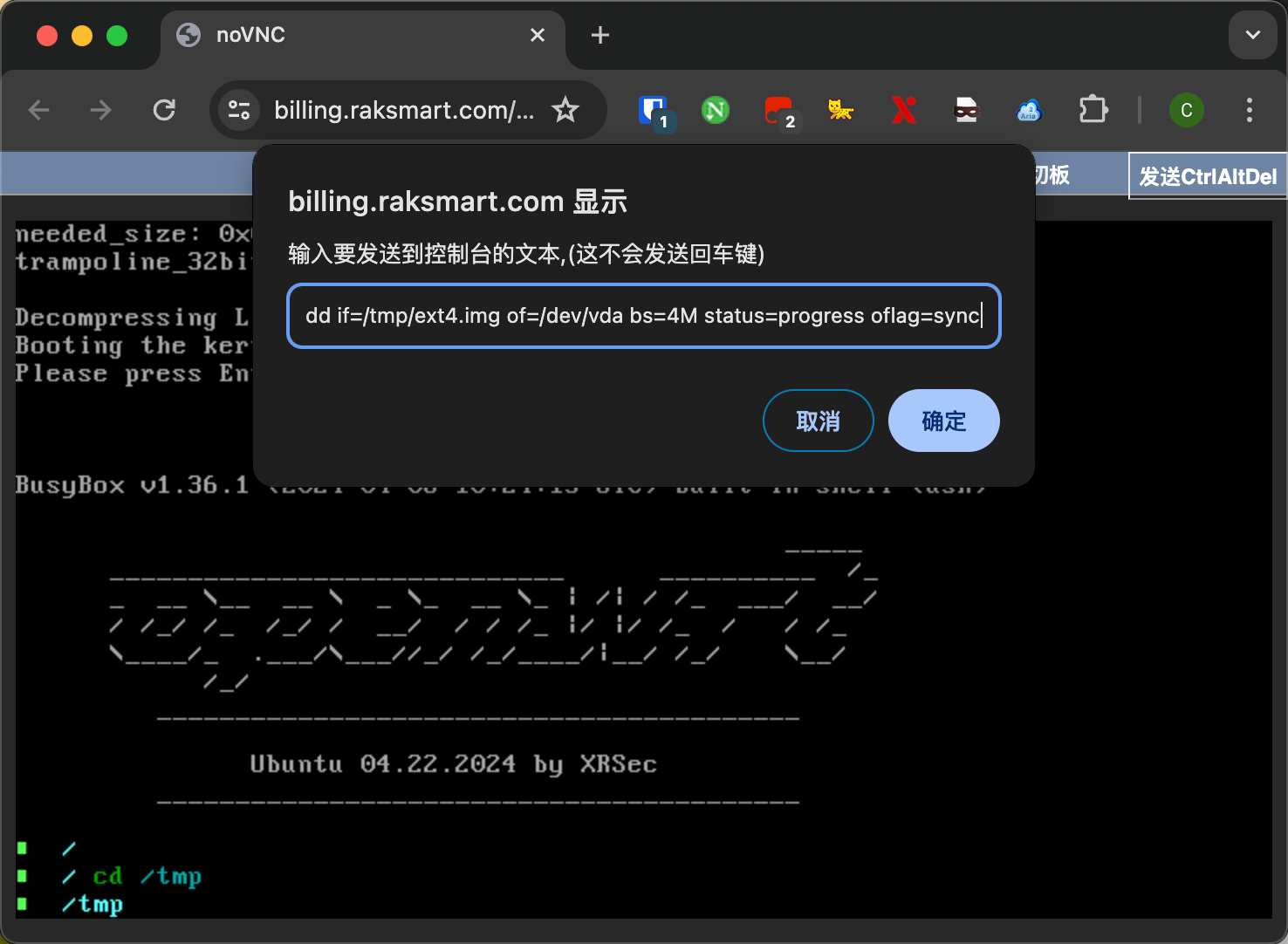

切换到浏览器上的终端(VNC)，因为 SSH 80%几率会崩

image-20240422213712040

image-20240422213845885

1
dd if=/tmp/ext4.img of=/dev/vda bs=4M status=progress oflag=sync
1
2
3
4
5
6
7
# 当你看到这种文字的时候代表镜像写入完成
# 36147341 records in
# 36147341 records out

# 刷写完毕后可能强制重启不了，强制重启命令
echo 1 > /proc/sys/kernel/sysrq
echo b > /proc/sysrq-trigger

等待

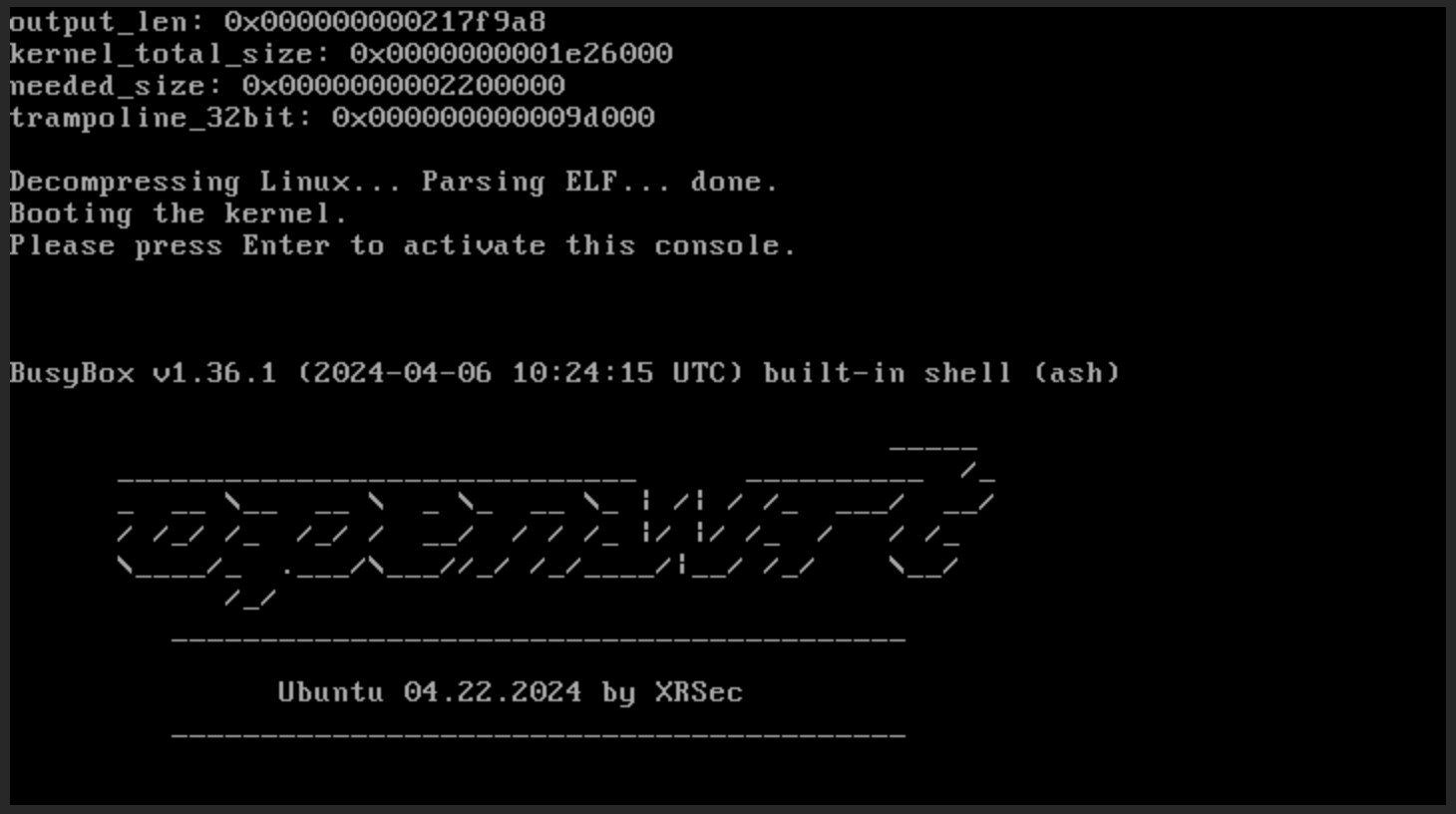

大概 3 分钟左右，看一下 VNC，如果卡住了没输出，就按一下回车，看看有没有反应，如果出现这种，就算安装好了

image-20240422214528674

配置

修改网络配置

还是在 VNC 终端输入粘贴，信息需根据你的服务器自定义

1
2
3
4
5
6
7
8
9
10
11

uci set network.lan.proto='static'
uci set network.lan.ipaddr='192.168.10.100'
uci set network.lan.netmask='255.255.255.0'
uci set network.lan.gateway='192.168.10.1'
uci set network.lan.dns='8.8.8.8 114.114.114.114'
uci commit network
# 重启网络
/etc/init.d/network reload
# 关闭防火墙
/etc/init.d/firewall stop

登录

默认密码：root、paswd、password、admin、123456

扩容

1
2
3
4
5
opkg update && opkg install lsblk parted losetup resize2fs

curl "https://openwrt.org/_export/code/docs/guide-user/advanced/expand_root?codeblock=0" | sh

reboot

个性化配置

NGINX

我把默认的 uhttpd 替换成了 NGINX (openwrt.ai 默认就是 NGINX)

1
2
3
4
5
6
7
8
9
10
11
/etc/init.d/uhttpd stop
/etc/init.d/uhttpd disable
/etc/init.d/nginx enable
/etc/init.d/nginx start

uci set nginx.global.uci_enable=false
sed -i "s/option uci_enable 'true'/option uci_enable 'false'/g" /etc/config/nginx
/etc/init.d/nginx enable
/etc/init.d/nginx restart

# 听说得 mv /etc/nginx/uci.conf /etc/nginx/uci.conf.bak 不然重启就报错

/etc/nginx/nginx.conf

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
# This file is re-created when Nginx starts.
# Consider using UCI or creating files in /etc/nginx/conf.d/ for configuration.
# Parsing UCI configuration is skipped if uci set nginx.global.uci_enable=false
# For details see: https://openwrt.org/docs/guide-user/services/webserver/nginx
# UCI_CONF_VERSION=1.2

worker_processes auto;

user root;

include module.d/*.module;

events {}

http {
        access_log off;
        log_format openwrt
                '$request_method $scheme://$host$request_uri => $status'
                ' (${body_bytes_sent}B in ${request_time}s) <- $http_referer';

        include mime.types;
        default_type application/octet-stream;
        sendfile on;

        client_max_body_size 128M;
        large_client_header_buffers 4 8k;

        gzip on;
        gzip_vary on;
        gzip_proxied any;

        # IP 访问给个假视野 默认 OpenWrt 安装的 NGINX 不存在 /usr/share/nginx/html 需要自己去下载Linux NGINX 安装包 然后解压提取: https://nginx.org/download/nginx-1.20.1.tar.gz
        server {
                listen 80;
                # listen [::]:80;
                server_name _lan;
                root /usr/share/nginx/html;
                access_log /var/log/nginx/_lan.log;
        }

        # SNI 防御
        server {
                listen 443 ssl default_server;
                ssl_reject_handshake on;
                access_log /var/log/nginx/_lan_ssl.log;
        }
        # OpenWrt 配置
        server {
                listen 80;
                # listen [::]:80;
                server_name xxx.com;
                root /www;
                include conf.d/*.locations;
                access_log /var/log/nginx/op.log;

                #禁止非 Mozilla/ 请求头的访问
                if ($http_user_agent !~* "Mozilla/") {
                        return 403;
                }

                #禁止非GET|HEAD|POST方式的抓取
                if ($request_method !~ ^(GET|HEAD|POST|PUT)$) {
                        return 403;
                }

                #禁止Scrapy等爬虫工具的采集
                if ($http_user_agent ~* (Scrapy|Curl|HttpClient)) {
                        return 403;
                }
        }
        include conf.d/*.conf;
}

单臂路由

1
iptables -t nat -I POSTROUTING -o eth0 -j MASQUERADE

Cloudflare

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
# https://www.cloudflare.com/ips replace the ips-v4 with ips-v6 if needed
# https://blog.cloudflare.com/cloudflare-now-supporting-more-ports/
for ip in $(curl -kfsSL https://www.cloudflare.com/ips-v4);
   do iptables -I INPUT -p tcp -m multiport --dports 80,443,8080,8443,2052,2053,2082,2083,2086,2087,2095,2096,8880 -s $ip -j ACCEPT
   echo " * Add $ip -> INPUT"
done

if [ $? -eq 0 ]; then
   iptables -A INPUT -p tcp -m multiport --dports 80,443,8080,8443,2052,2053,2082,2083,2086,2087,2095,2096,8880 -j DROP
   echo " * DROP 80,443,8080,8443,2052,2053,2082,2083,2086,2087,2095,2096,8880 -> INPUT"
fi

for ip in $(curl -kfsSL https://www.cloudflare.com/ips-v6);
   do ip6tables -I INPUT -p tcp -m multiport --dports 80,443,8080,8443,2052,2053,2082,2083,2086,2087,2095,2096,8880 -s $ip -j ACCEPT
   echo " * Add6 $ip -> INPUT"
done

if [ $? -eq 0 ]; then
   ip6tables -A INPUT -p tcp -m multiport --dports 80,443,8080,8443,2052,2053,2082,2083,2086,2087,2095,2096,8880 -j DROP
   echo " * DROP6 80,443,8080,8443,2052,2053,2082,2083,2086,2087,2095,2096,8880 -> INPUT"
fi

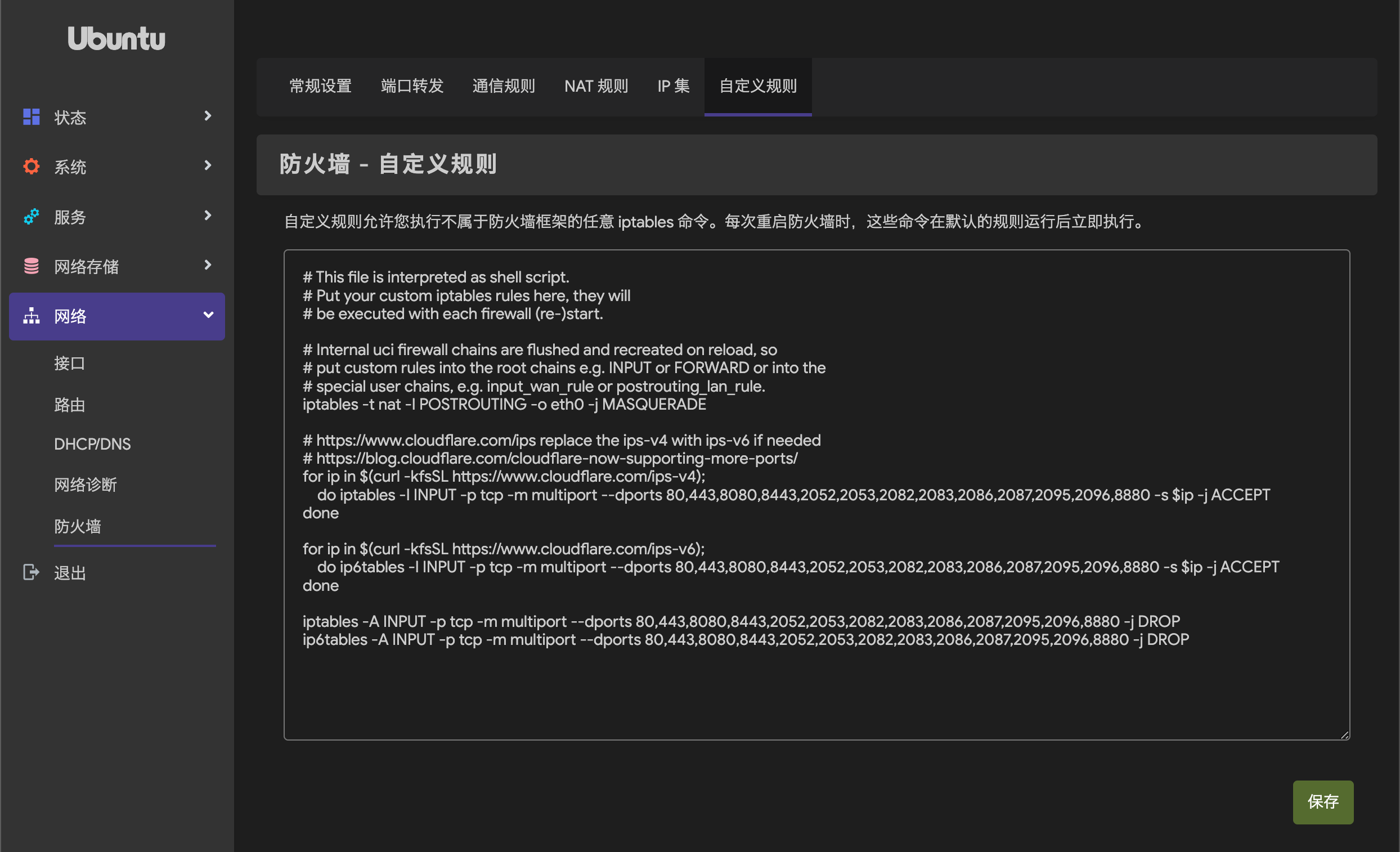

防火墙持久化

image-20240422231031451

Alist

安装

1
sh -c "$(curl -ksS https://raw.githubusercontent.com/sbwml/luci-app-alist/master/install.sh)"

监听地址修改

1
2
3
# /etc/init.d/alist
sed -n 's/listen_addr=$lan_addr/listen_addr="127.0.0.1"/p' /etc/init.d/alist
sed -i 's/listen_addr=$lan_addr/listen_addr="127.0.0.1"/g' /etc/init.d/alist
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
# NGINX
server  {
    listen 80;
    server_name  alist.xxx.com;
    index  index.html;

    #禁止非 Mozilla/ 请求头的访问
        if ($http_user_agent !~* "Mozilla/") {
        return 403;
        }

        #禁止非GET|HEAD|POST方式的抓取
        if ($request_method !~ ^(GET|HEAD|POST|PUT)$) {
        return 403;
        }

        #禁止Scrapy等爬虫工具的采集
        if ($http_user_agent ~* (Scrapy|Curl|HttpClient)) {
        return 403;
        }

    access_log /var/log/nginx/alist.log;

    location / {
        proxy_pass  http://127.0.0.1:5244;
        proxy_set_header Host $proxy_host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    }
}

致谢
